Midway turntable repower, Rowe, 20 Aug 2012

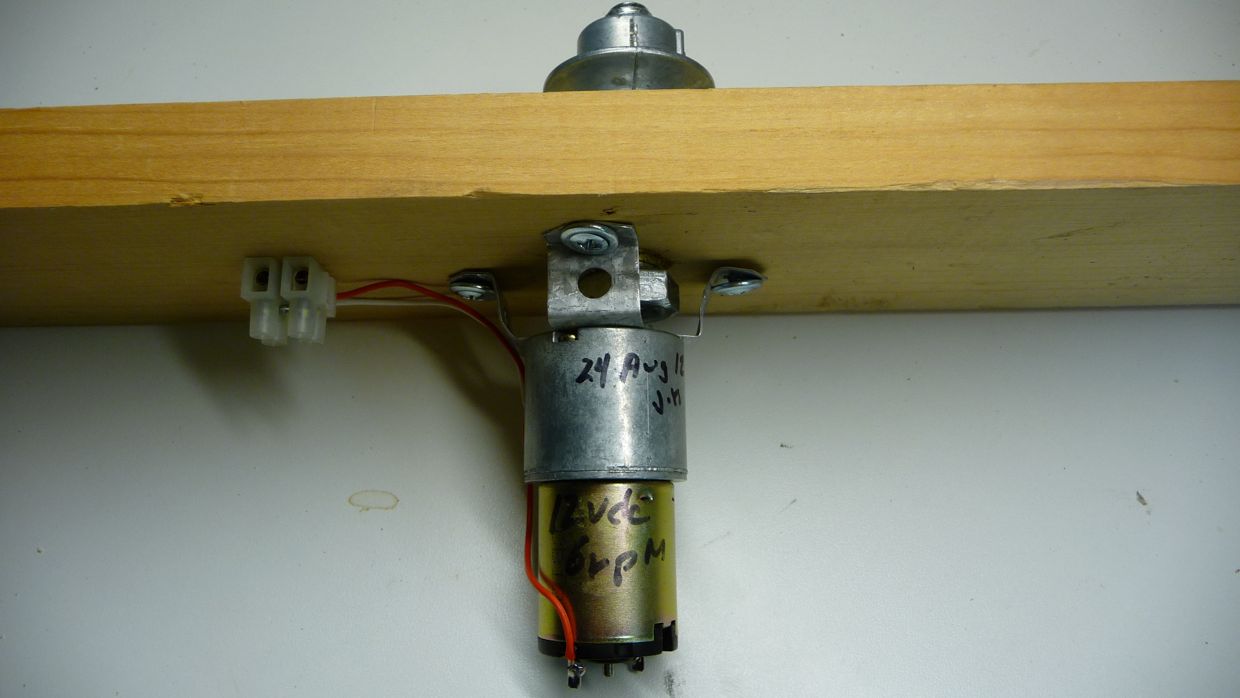

Using a 12vdc 500 to 1 6rpm gearhead motor connected to a 1.25 inch pulley driving a 10 inch pulley on turntable. Works great! John Engel did installation, I built a new latch relay board for 1rpm speed, plus stop and jog controls.
